Delfield 6000 XL —
Refrigerant Leak Repair
Three-door reach-in climbing to 42°F with the compressor struggling. Refrigerant leak found, repaired, system evacuated and recharged. Product saved, unit back to 36°F same day.
Delfield 6000 XL · 3-door
42°F · before repair
Compressor · R-404A
The Problem
Temp Climbing to 42°F
Kitchen manager noticed the three-door reach-in wasn’t holding temperature. Internal thermometer showed 42°F and rising. Compressor running nonstop but barely cooling. Prep ingredients and dairy products at risk.
- Internal temp at 42°F (should be 36°F)
- Compressor running continuously
- Condenser warm but not hot enough
- Dairy and prep ingredients at risk
Our Diagnosis
Refrigerant Leak at Evaporator
Electronic leak detection found a leak at the evaporator coil connection. R-404A charge was significantly low. Compressor was working overtime trying to compensate — running hot and at risk of burnout if left another week.
- R-404A charge critically low
- Leak located at evaporator fitting
- Compressor overheating from low charge
- Condenser coils dirty but functional
What We Did
Leak Seal + Full Recharge
Recovered remaining refrigerant. Repaired the evaporator fitting. Pressure-tested the system to verify no other leaks. Evacuated and recharged with fresh R-404A to factory spec. Cleaned condenser coils while unit was open.
- Recovered remaining R-404A refrigerant
- Repaired leak at evaporator connection
- Pressure-tested entire system
- Evacuated and recharged to factory spec
- Cleaned condenser coils
Project Photos
On-Site Documentation

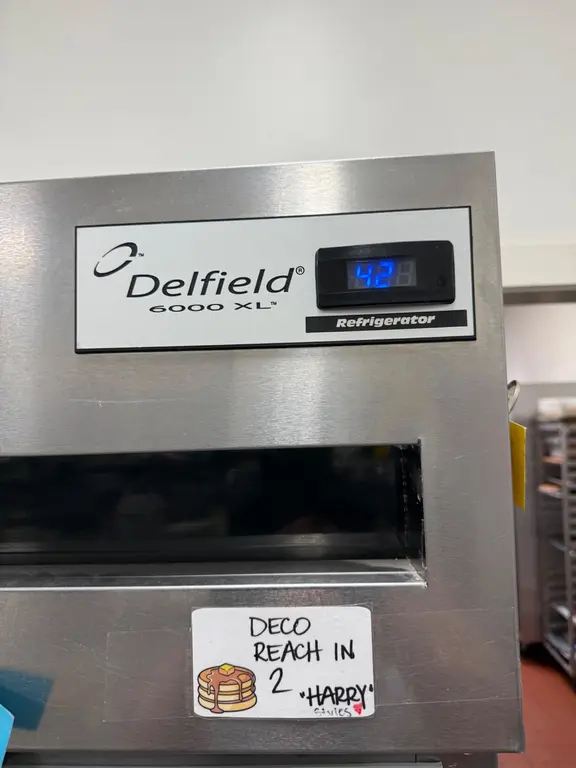

42°F · before service

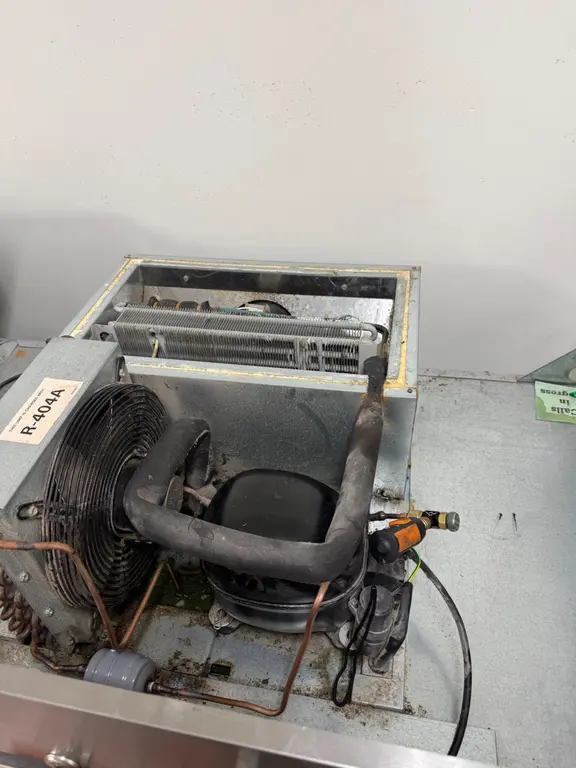

Compressor & evaporator exposed

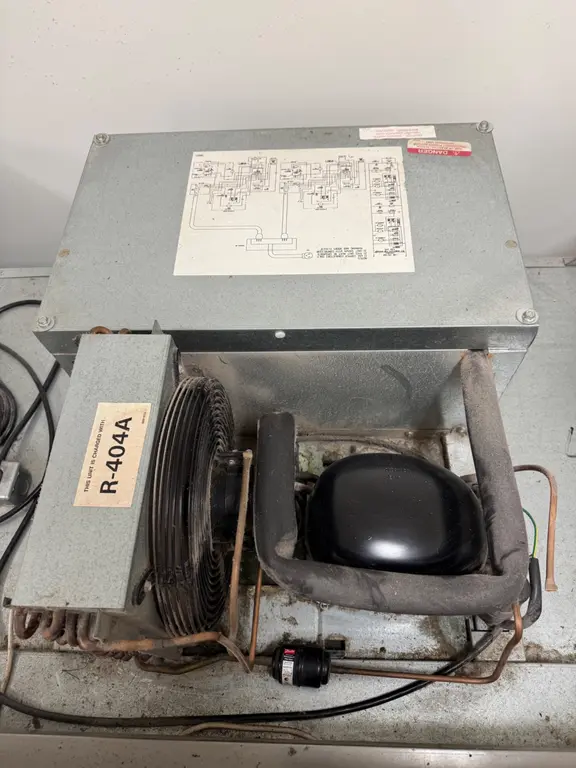

Wiring diagram & R-404A

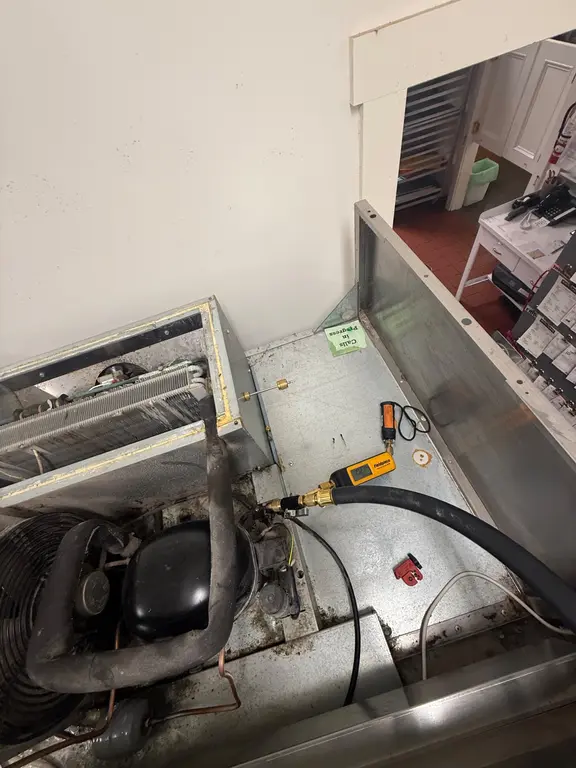

Vacuum & recharge

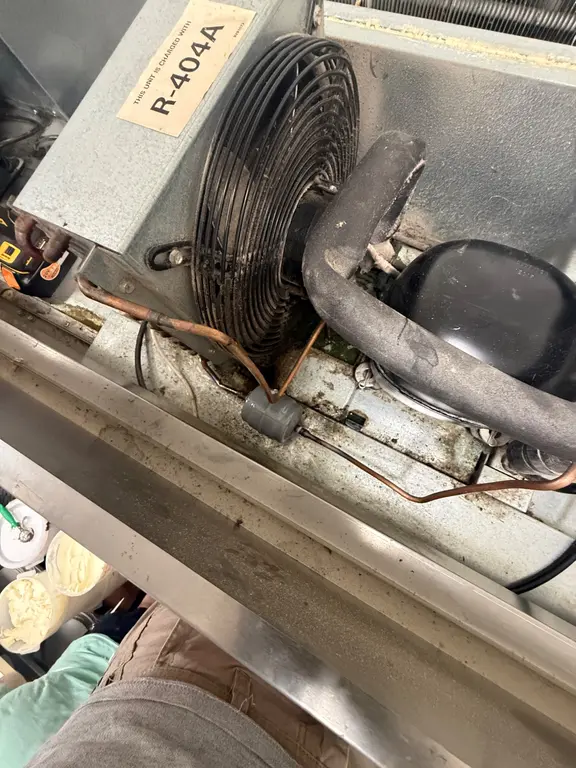

Condenser fan & compressor
Repair complete · 36°F
Products Saved — Back to 36°F
Unit holding steady at 36°F within 3 hours of repair. All prep ingredients and dairy saved. Compressor running normal cycles instead of nonstop — extending its remaining lifespan significantly.
42°
→ 36°F
$0
Spoilage
