Walk-In Cooler Condenser Replacement
Old condensing unit failed completely. Temperature past 50°F with thousands of dollars in food inventory at risk. New unit sourced, lifted to rooftop, and installed same day.
Condenser lift to rooftop
Bohn evaporator inside
New condenser installed
The Problem
Cooler Above 50°F
Restaurant manager called in the morning — walk-in cooler temperature had climbed past 50°F overnight. Condensing unit outside had stopped running completely. All perishable inventory at risk of spoilage.
- Walk-in temp at 50°F and rising
- Condensing unit completely silent
- Compressor motor seized from age
- Thousands in food inventory at risk
Our Diagnosis
Condensing Unit End of Life
Compressor motor seized — beyond repair. Unit was 14 years old, running on R-404A. Evaporator (Bohn) inside the walk-in was in serviceable condition. Decision: replace condensing unit, keep the evaporator.
- Compressor motor seized — not repairable
- Unit age: 14 years — past expected lifespan
- Bohn evaporator inside still functional
- R-404A system — matched replacement sourced
What We Did
Rooftop Condenser Swap
Sourced a matching condensing unit locally. Crane-lifted the old unit off the roof and the new one into position. Connected refrigerant lines, pressure-tested, evacuated, and charged. Serviced the Bohn evaporator.
- Removed failed condensing unit via crane
- Installed new matched condenser on rooftop
- Pressure-tested and evacuated line set
- Charged R-404A to manufacturer specs
- Cleaned and serviced Bohn evaporator coil
Project Photos
On-Site Documentation

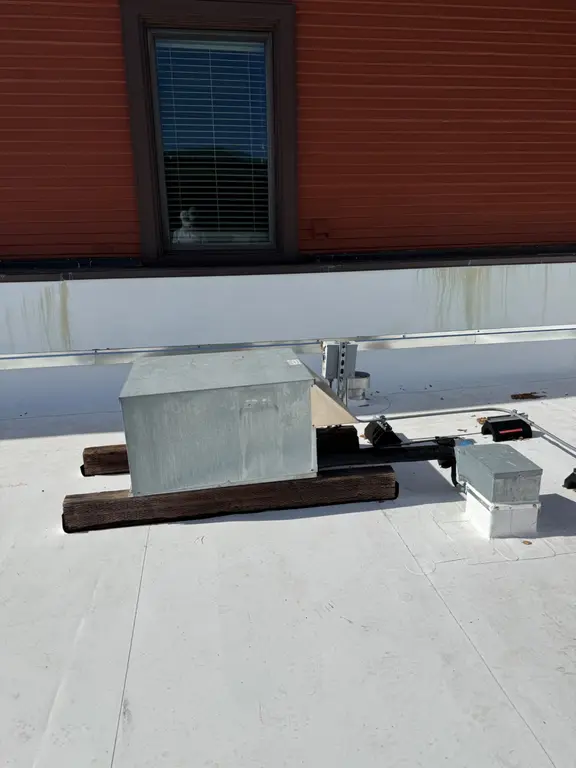

New unit · before install
Crane lift to rooftop

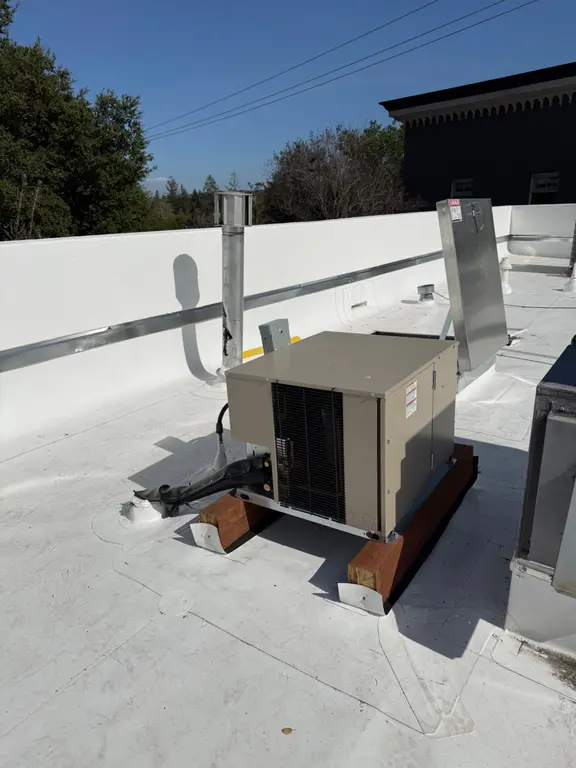

Installed & connected

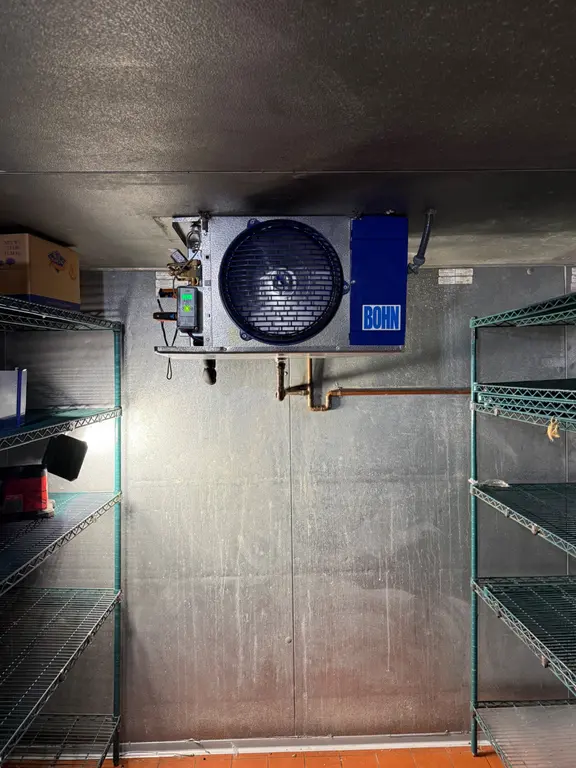

Bohn evaporator serviced

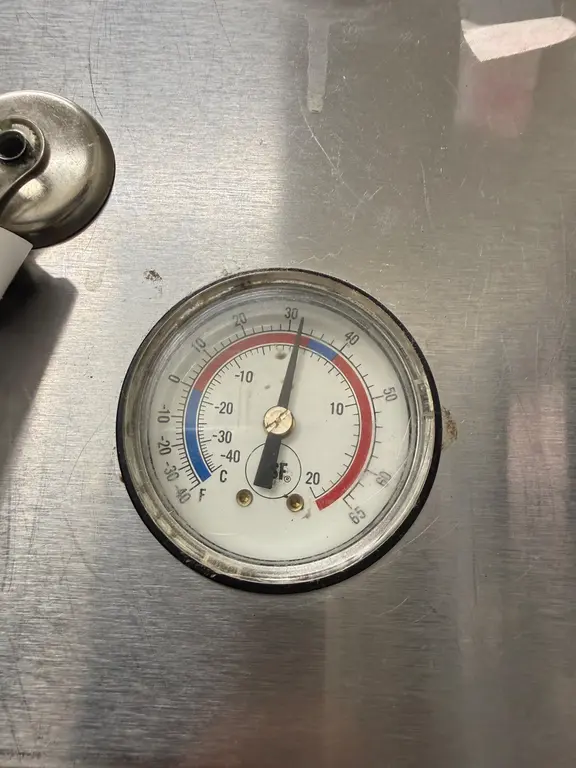

35°F · target reached
Full Inventory Saved
Walk-in temperature back to 35°F by end of day. All food inventory preserved — zero spoilage, zero health code issues. Restaurant operated normally through dinner service.
50°
→ 35°F
$0
Spoilage
1
Day
