Cooper & Hunter Mini-Split —
Home Addition
Room addition with no existing HVAC. Needed heating and cooling without running new ductwork through the house. Cooper & Hunter MIA 9K BTU ductless system — wall mount indoor, concealed line set, pad-mount outdoor. Installed in one day.
Indoor wall mount installed
Outdoor condenser · pad mount
Cooper & Hunter MIA 9K
The Situation
Room Addition — No HVAC
Homeowner completed a room addition but didn’t extend the existing HVAC ductwork during construction. The new room had no heating or cooling. Running new ductwork through finished walls would be expensive and destructive.
- New room addition with no HVAC connection
- Extending ductwork not practical (finished walls)
- Room approximately 250 sq ft
- Needed both heating and cooling year-round
Our Assessment
Ductless Mini-Split — Perfect Fit
Ductless mini-split is the ideal solution for room additions — no ductwork needed. Cooper & Hunter MIA series selected for the right capacity (9,000 BTU), quiet operation (24 dBA indoor), and Wi-Fi control. Only requires a 3-inch wall penetration.
- 9,000 BTU matches room load exactly
- 24 dBA indoor unit — whisper-quiet
- Wi-Fi enabled for phone control
- Only 3-inch wall hole required
What We Did
One-Day Ductless Install
Mounted indoor wall unit at optimal height. Set outdoor condenser on concrete pad next to the house. Ran refrigerant and electrical lines through a concealed line set cover for clean aesthetics. Vacuum, charge, and commission — all in one day.
- Wall-mounted indoor unit at optimal 7-foot height
- Outdoor condenser on concrete pad
- Concealed line set cover for clean look
- Full vacuum, charge, and system commissioning
- Configured Wi-Fi and remote control
Project Photos
On-Site Documentation

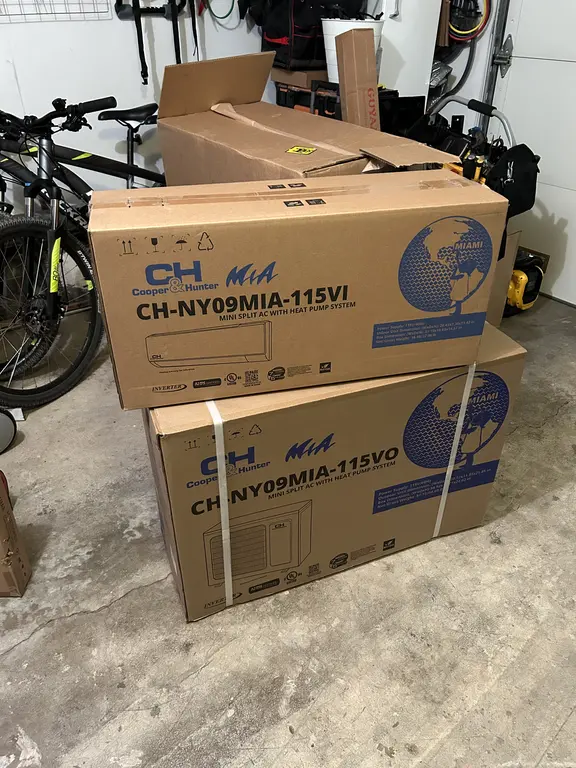

Equipment · before install

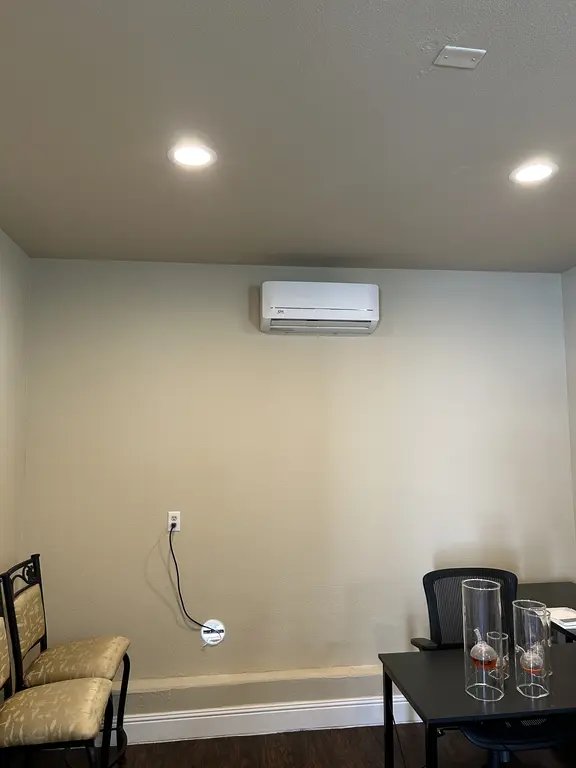

Wall mount · 7-foot height
Condenser · pad mount
Complete Installation — 1 Day
Room addition now has independent heating and cooling. Homeowner controls the system from their phone. No ductwork damage to existing walls. Clean line set cover maintains home aesthetics.
9K
BTU
24
dBA Quiet
1
Day
